Diaphragm valves with flanged or socket connections, providing excellent throttling capabilities and bubble-tight sealing. Available from 1/2″ to 3″ sizes . The valve design is resistant to abrasion and non-clogging. When the diaphragm is pulled away from the weir, flow is streamlined. Slurries at low pressure that would normally clog other valves easily

pass through a diaphragm valve. The valve is suitable for throttling or on/off service in a wide range of applications. Diaphram Valves Are Considered In The Biopharma Industry As The Only True Aseptic Valve

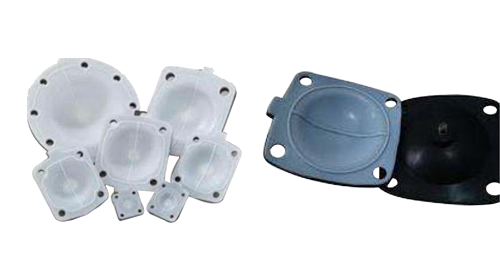

• 100% VIRGIN PTFE FACE WITH EPDM BACKING
• EPDM BACKED BY PTFE ( BONDED )
• EPDM BACKED BY PTFE ( PADDED )
• SUITABLE FOR BIO PROCESS APPLICATION
• AS STANDARD PROCEDURE WE PROVIDE LAB TEST CERTIFICATE FOR EVERY BATCH OF DIAPHRAGM
• ALL OUR DIAPHRAGMS COME WITH MOLDED CALENDAR INDICATING BATCH NO OF DIAPHRAGM

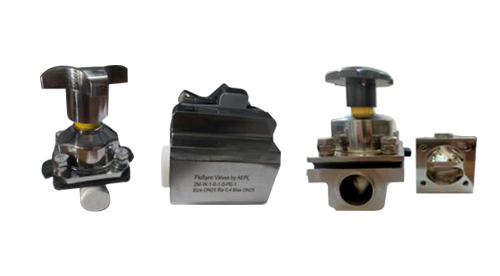

• Description : Manual Casted Sanitary diaphragm valve
• MOC : Wetted - ASTM A351 CF3M(SS 316L) Non-wetted - Ployamide or ASTM A351 CF8(SS 304)
• Ra Finish : < 0.4 Ra finish inside ( Note – We provide Ra Report/Graph along with supply if required)
• Diaphragm : EPDM , EPDM Backed by PTFE
• Connection Size : ½” - 2"
• Surface Finish : Mechanical or Electro Polish
• End Connections : V-band (Hygienic) Clamp, Butt-weld (As per ASME BPE)

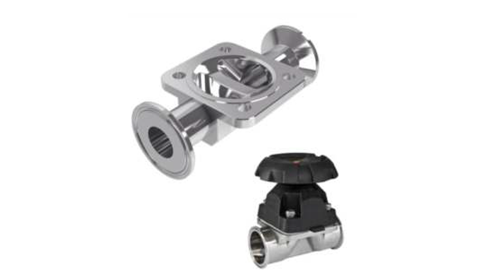

• Description : Manual Blocked Sanitary diaphragm valve
• MOC : Wetted - Stainless steel 316L Non-wetted - Ployamide or ASTM A351 CF8(SS 304)
• Ra Finish : <0.4 Ra finish inside ( Note – We provide Ra Report/ Graph along with supply if required )
• Diaphragm : EPDM , EPDM Backed by PTFE
• Connection Size : ½” - 2"
• Surface Finish : Mechanical or Electro Polish
• End Connections : V-band (Hygienic) Clamp, Butt-weld (As per ASME BPE)

• Chemical industry
• Industrial re-circulation systems
• Pharmaceuticals
• Cleaning in place (CIP )
• Sterilisation in place (SIP)
• Food and beverage
• Process engineering
• BioTechnology
